Description
Application
The CIP sanitary self-priming pump is specially designed to dispose fluid materials that contain some gas. The pump is widely used in food, chemical industry, pharmeutical and other similar industries. It can serve as a reflux pump, return pump or circulation pump in the CIP cleaning system.
Sanitary mechanical shaft seal
Mechanical single seal with stationary seal ring of acid-resistant steel AISI316L with sealing surface in carbon and rotating seal rings of siliconcarbide. The pump has a stainless steel shroud for protection of the motor, and the complete unit is supported on four adjustable stainless steel legs.
All product wetted parts, pump casing, casing cover and impeller are made of acid-resistant steel AISI316L. Motor shroud is made of stainless steel AISI304. Seals are made of EPDM rubber.
Product wetted steel parts: Acid-resistant steel AISI 316L.
Technical data
Max. Inlet pressure: 0.5Mpa
Temperature range: -10ºC to +140ºC(EPDM) , other situation based on exact sealing material
Noise level(at 1m): 60-80dB(A)
Voltage and frequency: 3 Phase,50Hz,220-240V/380-420/660-690V
Motor sizes: 50Hz: 4, 5.5, 7.5kw

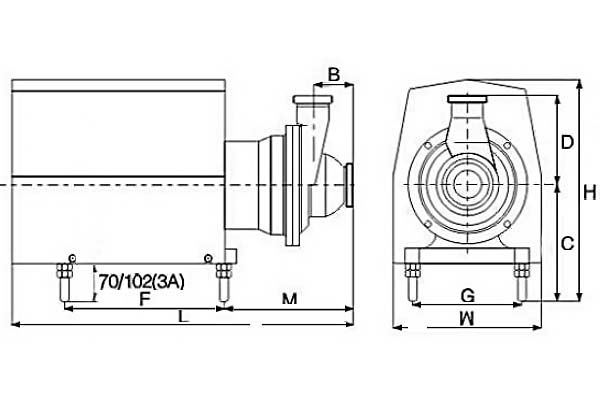

Drawing
F.A.Q.
|
1. Q: Do you have a factory? |
|
A: Yes, we do. We have our own factory base.
|
|
2. Q: How long is the production cycle? |
|
A: It depends on the machine.The fastest delivery time is within a few days, and the longest delivery time is twenty days. |
|
3. Q: Is there a warranty period? |
|
A: Yes,the warranty period is one year. |
|
4. Q: Can the machine be customized? |
|
A: All machines can be customized according to the customers' needs. |
|
5. Q: Can I have a free sample? |
|
A: Yes, you can. Free samples or discount can be provided for our first friendly cooperation. |
|
6. Q: Do you have technical guidance？ |
|
A: We have professional teams to offer great technical guidance.We can offer free video call to solve technical problems. |
