Description
| Capacity | 3T-180T,0.75KW-75KW |
| Material | SUS304,SUS316L |
| Standard | DIN,SMS |
| Impeller | Closed Impeller, Open Impeller, Semi-Open Type Impeller |
| Surface Treatment | The parts contact with medium is polished |
| Working Condition | Sanitary centrifugal pump is a high and low level transmission, as well as the level transmission, and has an amount of suction |
| Temperature Range | -10 degrees Celsius-140 degrees Celsius |
| Washable Mechanical Sealing | Water Pressure: Max 0.1Pa |
| Flow Rate: 0.25-0.5L/min | |
| Working Pressure | ≤3KW,220-240V/380v-420V |
| >3kw,380V-420V/660-690V | |
| Frequency | 50HZ/60HZ |
| Working Method | Continuous(SI) |
| Rotate Speed | The standard rotate speed is 2900r/min-3500r/min |
| Connection ends | Tri-clover, Butt Weld, Threaded, Union and Flange |

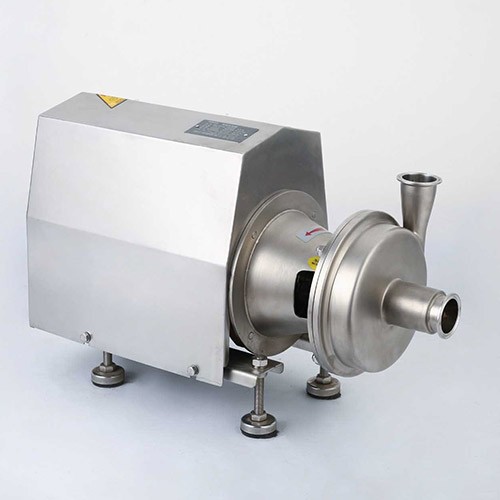

Advantages of Stainless Steel Sanitary Negative Pressure Pump
| 1.Configuration of "ABB“ brand three-phase AC motor is in accordance with the International Electrotechnical Commission IEC60072 Standard design comply with European "CE" marking requirements. |
| 2.The explosion-proof motor is also available that can meet with the requirements of different applications. |
| 3.It has excellent electric performance and with low noise, low vibration. The protection grade is IP55 and the insulation grade is F. |
F.A.Q.
|
1. Q: Do you have a factory? |
|
A: Yes, we do. We have our own factory base.
|
|
2. Q: How long is the production cycle? |
|
A: It depends on the machine.The fastest delivery time is within a few days, and the longest delivery time is twenty days. |
|
3. Q: Is there a warranty period? |
|
A: Yes,the warranty period is one year. |
|
4. Q: Can the machine be customized? |
|
A: All machines can be customized according to the customers' needs. |
|
5. Q: Can I have a free sample? |
|
A: Yes, you can. Free samples or discount can be provided for our first friendly cooperation. |
|
6. Q: Do you have technical guidance？ |
|
A: We have professional teams to offer great technical guidance.We can offer free video call to solve technical problems. |
